Doepfer Dial Electronic Manual do Utilizador

DIALELECTRONICUniversal Midi Control Electronics for rotary encodersInstallation and User's Guide© 2005 by Doepfer Musikelektronik

DIAL ELECTRONIC Page 10 User's GuideCheck listIn case that your DE installation does not work at the first go please check thefollowing points:•

User's Guide Page 11 DIAL ELECTRONICExtent of deliveryThe DE delivery contains the following parts:• Dial Electronic pc board, assembled and te

DIAL ELECTRONIC Page 12 User's GuideDoepferMusikelektronikwww.doepfer.com

DIAL ELECTRONIC Page 2 User's GuideElectrical safety / EMC compatibilityDIAL ELECTRONIC (abbreviated "DE" in the following) is a so-cal

User's Guide Page 3 DIAL ELECTRONICTable of contentsElectrical safety / EMC compatibility ...

DIAL ELECTRONIC Page 4 User's GuideIntroduction• Dial Electronic (abbreviation: "DE" in the following) is an universal electronicsDIY k

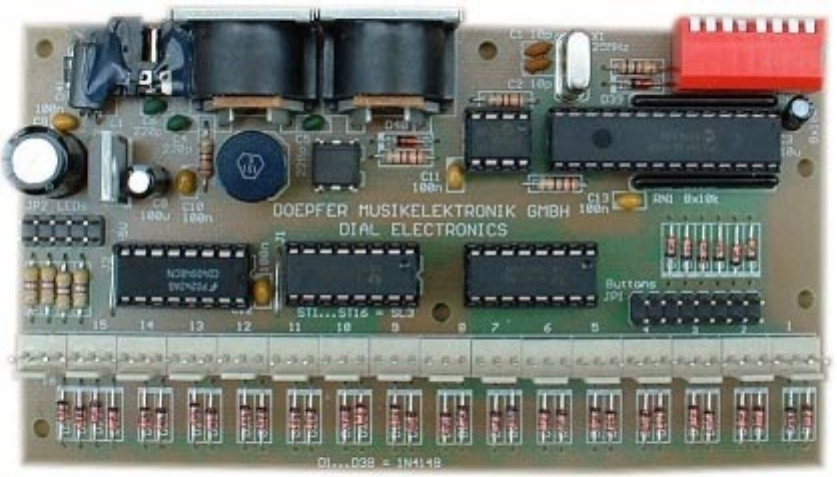

User's Guide Page 5 DIAL ELECTRONICConnections(4)connectors for 16 rotary encoders(ST1...ST16)(5)connector for theswitches / buttons(JP1)(7)DIP

DIAL ELECTRONIC Page 6 User's GuidePower Supply (1)DE does not have a built-in power supply. Instead it uses a plug-in type externalpower supply

User's Guide Page 7 DIAL ELECTRONICConnectors for the 16 rotary encoders (4)For the connection of 16 rotary encoders the 16 single row pin heade

DIAL ELECTRONIC Page 8 User's GuideConnector for 6 control switches (5)The pin header JP1 is used to connect 6 control switches (momentary switch

User's Guide Page 9 DIAL ELECTRONICIt has to be pointed out that we cannot take back DE modules with solder residues onthe pin headers ! Therefo
