1. Introduction

Module A-141 (VCADSR) is a voltage controlled

envelope generator.

Whenever a

gate signal

is sensed at the VCADSR’s

gate input, an adjustable sequence of voltages is

triggered - the envelope. You can then use these

envelopes to modulate a VCO, VCF and/or VCA, and

alter the input and output voltages of all sorts of

modules.

The shape of the envelope is governed by four para-

meters: Attack, Decay, Sustain and Release (see Fig.

1 on page 3). On the A-141, these parameters can be

controlled by hand, or by voltage control, via the

dedicated CV inputs (each with an attenuator).

The A-141 VCADSR also has a retrigger facility:

while the gate is open, a trigger pulse received at the

retrigger socket will

re-start the envelope

from the

beginning of its attack phase (see Fig. 2 on page 5).

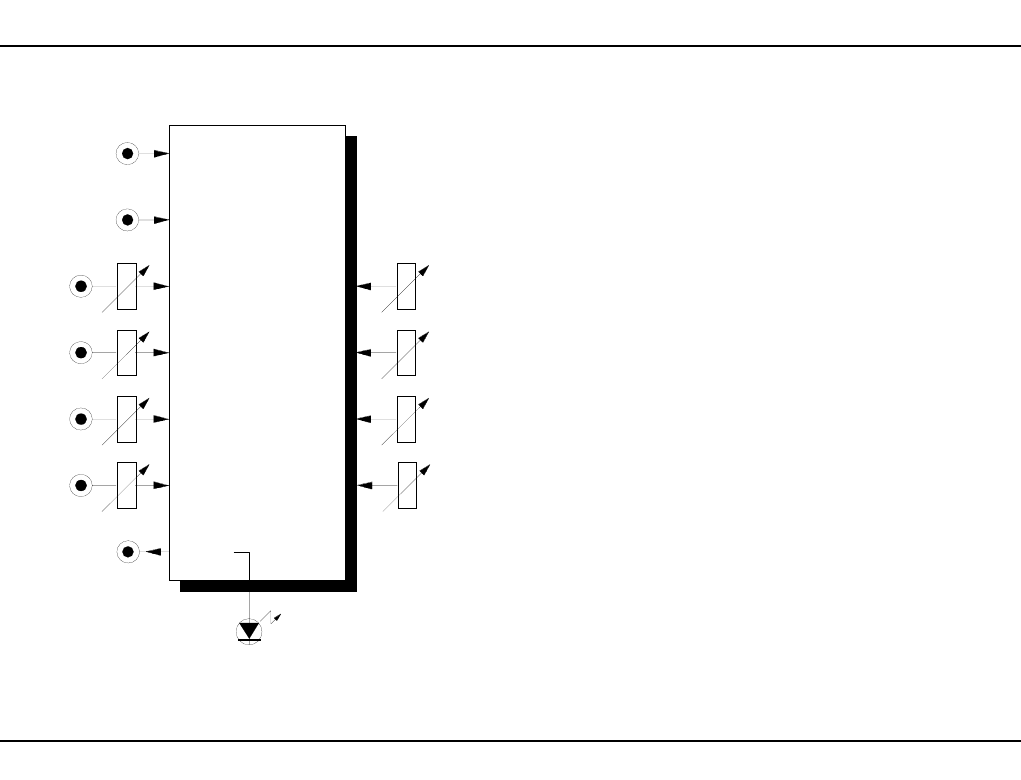

Gate

Decay

Release

Attack

A-141

VCADSR

Sustain

Retrig.

Output

CV A

CV D

CV S

CV R

1 2 3 4 5 6 7 8
